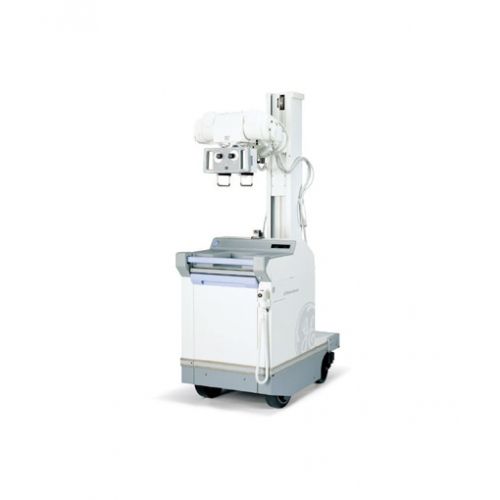

GE GENIUS 100 MOBILE (PORTABLE)
Specification
Parameter
MODEL
Genius 100 Mobile
Features:
Microprocesser based digital control panal.
Feather touch membrane keyboard.
Convenient auto programmefor better image
quality.
Manual mode selection Separate KVP,MAS&Sec,
display X-Ray on audible tone.
On / Off with overload circuit breaker.
3 Wheel Design- for maximum mobility.
Automatic tube overload protection.
Tube Current
25mA,50mA,100mA
Tube Voltage
40kVp - 100kVp
Timer
0.02 sec to 6 sec solid state
Power
8KW
Rectification
Full wave rectififed
Length
1200mm
Width
650mm
Height
1880mm
GE GENIUS 60 MOBILE (PORTABLE)
Specification
Parameter
MODEL
Genius 60 Mobile
Features
Microprocesser based digital control panal.
Feather touch membrane keyboard.
Convenient auto programmefor better image
quality.
Manual mode selection Separate KVP,MAS&Sec,
display X-Ray on audible tone.
On / Off with overload circuit breaker.
3 Wheel Design- for maximum mobility.
Automatic tube overload protection.
Tube Current
25mA,50mA,100mA
Tube Voltage
40kVp - 100kVp
Timer
0.02 sec to 6 sec solid state
Power
8KW
Rectification
Full wave rectififed
Length
1200mm
Width
650mm
Height
1880mm
GE DX 300 (FIXED)
Specification
Parameter
Brand
GE
MODEL
DX300
Application
Hospital, Nursing Home, Clinic
Hospital, Nursing Home, Clinic
Fixed
Tube Voltage
40~125 kV
Thermal Capacity
212 kJ(300KHU)
GE DX 525 (FIXED)
Specification
Parameter
Brand
GE
MODEL
DX525
Application
Hospital, Nursing Home,
Machine Type
Fixed
SIEMENS HELIOPHOS - D(FIXED)
Specification
Parameter
Brand
Siemens
MODEL
Heliophos
600 mA at
60 kV
160 mA at
125 kV
Shortest exposure time
20ms
Exposure time
maximum 5 sec
Output power
40 kW
Radiography parameters kV range
36 to 125 kV in 25 steps
Power consumption
50 kVA
Dimension(lxbxh) Control console
800 x 550 x 1110 mm
Line connection
350 V - 446 V, 50Hz, 63 A,
Anode heat storage capacity
B 100kJ
SIEMENS PLEOPHOS - D(FIXED)
Specification
Parameter
Brand
Siemens
MODEL
Pleophos
300 mA at
60 kV
160 mA at
125 kV
Shortest exposure time
20ms
Exposure time
maximum 5 sec
Output power
40 kW
40 kW
36 to 125 kV in 25 steps
Power consumption
50 kVA
Dimension(lxbxh) Control console
800 x 550 x 1110 mm
Line connection
350 V - 446 V, 50Hz, 63 A,
Anode heat storage capacity
100kJ

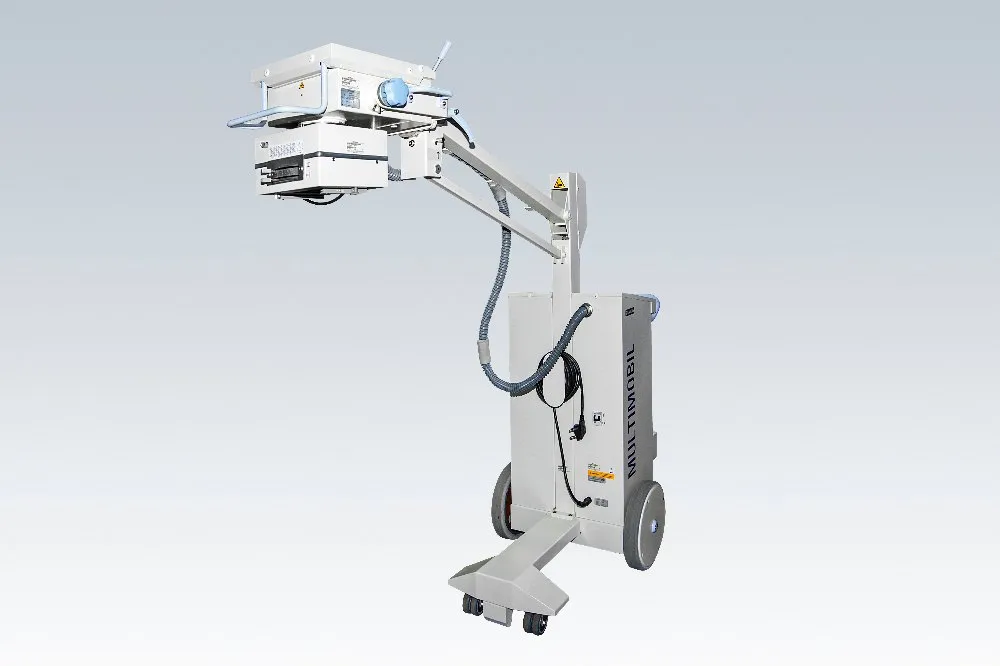

SIEMENS MULTI MOBIL 2.5 (PORTABLE)
Specification
Parameter
BRAND
Siemens
Model
Multimobil 2.5
Output
2.5KW
Exposure time
min - 20 ms, max - 5 s
Exposure technique
two point technique
kVp-range
40 - 100 kV
Unit dimensions
65x142x142cm(WxHxL)
Power consumption
3kVA
mA range
13mA to 63mA
mAs range
0.32mAs to 200mAs
Focal spot
1.5mm x 1.5mm
Inherent Filteration
0.5mm AI
ALLENGERS MARS 3.5 (PORTABLE)
Specification
Parameter
Model
Mars 3.5
X-Ray generator
High Frequency(40KHz)
Output power
3.5 kW
Rad.kV
40 - 110 KV
mAs range
1 to 200mAs
Control panel
Totally feather touch
micro controller based
Digital displays
KV & mAs
cord
Provided
X-ray tube head
Monoblock version
Collimator
Manually operated with light-
beam diaphram
Collimator light on/off
switching fromcontrol
panel
YES
Power supply
230V (±10%), AC, 50/60 Hz.,
Single phase,15 Amps
ALLENGERS MARS 6 (PORTABLE)
Specification
Parameter
Mode
Mars 6
X-Ray generator
High Frequency(40KHz)
Output power
6 kW
Rad.kV
40 - 110 KV
mAs range
1 to 200mAs
Control panel
Totally feather touch
micro controller based
Digital displays
KV & mAs
cord
Provided
X-ray tube head
Monoblock version
Collimator
Manually operated with light-
beam diaphram
Collimator light on/off
switching fromcontrol
panel
YES
Power supply
230V (±10%), AC, 50/60 Hz.,
Single phase,15 Amps
SEIMENS MULTIPHOS 15 (FIXED)
Specification
Parameter
Model
Multiphos 15
Output power
15 kW
mA range
64 - 200mA
kVp range
40 – 125 kV
mAs range
1.25 - 200 mAs
Exposure time
10 - 3000 mSec
Fluroscopy voltage
Adjustable from 50 kv to 90 kv
Fluroscopy modes
Anti isowatt, Contrast
Mains Cable Length
5m
Weight
130 Kg/ 160 Kg
