C-ARM Machines

GE 9800

Specification	Parameter
Brand	GE
MODEL	Asteion Super 4
power	15kW
Kvp range(generator)	Up to 120
mA range	Up to 75 mA
Frequency	60kHZ
Digital spot	upto 75mA
Pulse width	10ms
Anode heat capacity(x-ray)	300,000 HU
Anode cooling rate	70,000 HU/min
Housing heat capacity	1,600,000 HU
motorized rotation	360(deg)
Aspect ratio	4:3
Height(diemension)	69.7 in (1770 mm)
Width	33.5 in (851 mm)
Weight	610 lbs (277kg)

STENOSCOP II

Specification	Parameter
Brand	GE
MODEL	Stenoscop II
Type	full field ion chamber
Energy range	50 KVp to 150 KVp
Power supply	voltage 24V(dc) +10%/-15% Consumption 850mA(typical) fuse rated 2A- 250V
Imager	16/22 CCD

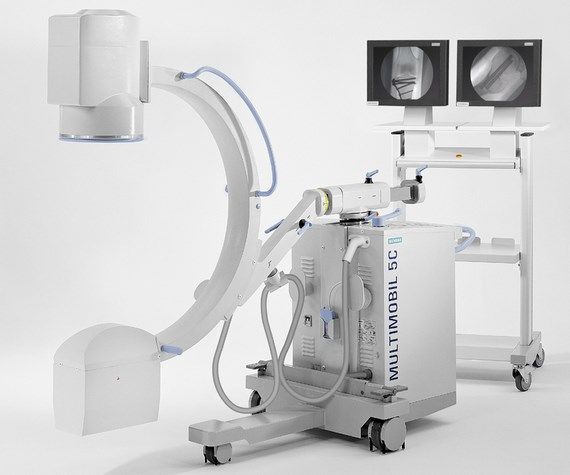

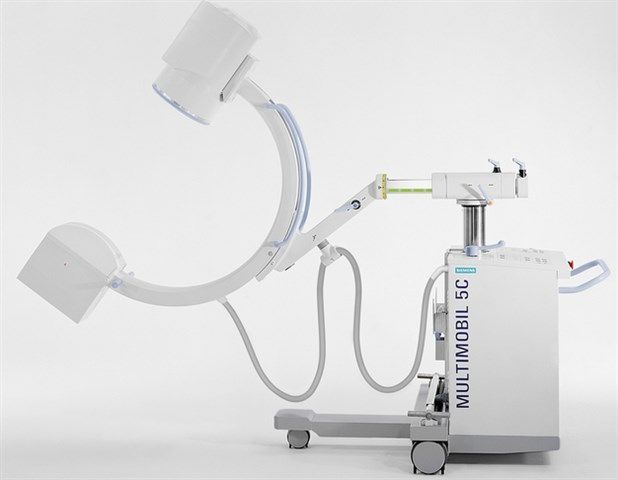

MULTIMOBIL 5C

Specification	Parameter
Brand	Siemens
MODEL	Multimobil 5C
Mains Voltage	110V/190 -240V∼
Line frequency	50 / 60Hz
Wave Shape	Multipulse DC-Ripple 5kV max
KVp Range	40 – 100kV in 20 steps
mA-range	13 – 63 mA @ 190-240V input 10 – 40 mA @ 110V input
Exposure Time	20mSec - 5 Sec in 24 steps @190-240V 20mSec – 8 Sec in 26 steps @ 110V
Fluoroscopy voltage	40-110 kV
X-ray Tube	Stationary Anode DF-151R
Nominal kV	110 kV
Weight	280kg Without packing
Operating Temperature	10° C to 40° C

MULTIMOBIL 5E

Specification	Parameter
Brand	Siemens
MODEL	Multimobil 5E
Machine Type	Portable (Mobile)
Power Supply Volts	440 V
Power Supply Frequency	50 Hz
Voltage	380 V,50 Hz
Fluoroscopy kV range	40-110kV
mA range anti-isowatt mode	0.5-5mA
X-ray Generator	Maximum output 2.5kW.
kV range(radiography)	40-100kV(20steps)
mA range	12 63mA
mAS	0.32-200mAS(19steps)
Parking position	1780mm x 1660mm x 850mm

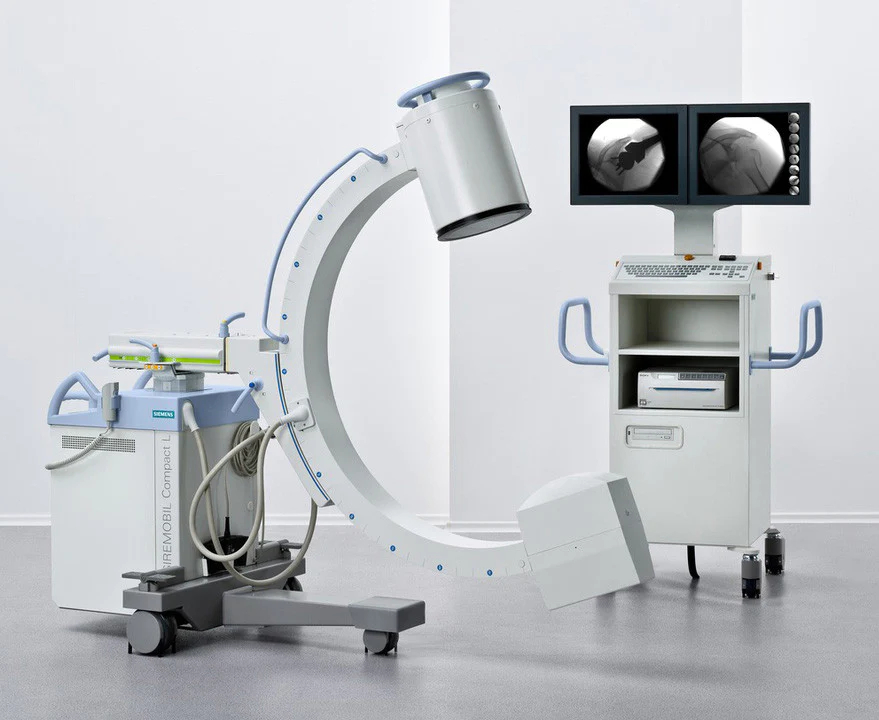

SIREMOBIL COMPACT L

Specification	Parameter
Brand	Siemens
MODEL	Siremobil Compact L
Orbital movement	130°
Angulation	± 190°
Vertical travel	45 cm (17.7″) motorized
Control frequency	15 kHz to 30 kHz
KV range	40 kV to 110 kV
Fluoroscopy	0.2 mA to 8.9 mA
Digital radiography	0.2 mA to 12.2 mA
Power	100V,110V,120V,127V,200V,230V,240V; (±10%), 60/60 Hz (±1 Hz)
Weight	C-arm chassis 257 kg Display trolley with one display 112 kg Display trolley with two displays 138 kg

BV 25 GOLD

Specification	Parameter
Brand	Philips
MODEL	BV-25 Gold
Dimensions(cm)	167x 90 x 166
Weight of the item(kg)	245
X-ray tube current (mA)	0.1
Stationary or Portable	Portable
C-arm arc depth(cm)	55
Digital or Analog	Digital
Voltage(V)	120/220

BV 29

Specification	Parameter
Brand	Philips
MODEL	BV29
@ 220v	20mA @ 105 kVp
Heat capacity(hu)	25000
Cooling, hu/min	12000
Radiographic mode	1.5
Fluoroscopic mode	0.6
CASSETTE HOLDER SIZES(cm) (IMAGE INTENSIFIER)	24x 24 (9.5 x 9.5)
Radiographic mode	1.5
Type (CONFIGURATION)	Converter
Image matrix size	476x 1400 x 10
POWER REQUIREMENTS	120V, 30 A; 220V, 16A
H x W x D of C-arm frame(cm)	183x 115.6 x 264.2
WEIGHT(kg)	300
Depth(cm0 (PA GANTRY)	64(25)
Orbital rotation, Â° (C-ARM)	+90/-25
Horizontal travel(cm)(C-ARM)	20
Vertical movement(cm)	45

BV LIBRA

Specification	Parameter
Brand	Philips
MODEL	BV Libra
Tube type	Fixed anode
Nominal X-ray tube voltage	110 kV
Maximum anode heat	50kHU
Anode cooling capacity	30.6 kHU/min
Max. generator output	3.15 kW
Max. X-ray tube voltage	110 kV
Max. X-ray tube current	20mA
kV range(fluoroscopy)	40 to 110 kV
kV range(Radiography)	40 - 105 kV
mA range(Radiography)	20 mA fixed
Image intensifier type	Single mode 6'' HC Triple mode 9'' HRC
Input voltage	110-240 V +/- 10%
Frequency	50/60 Hz
C-arm stand weight	9":260kg; 6": 260 kg
C-arm stand length	9": 1815mm; 6": 1785mm

BV 300 PLUS

Specification	Parameter
Brand	GE
MODEL	BV 300 PLUS
Generator	Radiographic Mode:
2.1 kW full-wave.	Focal spot: 1.4 mm.
Up to 110 kVp	kVp range: 40 – 105 kVp.
Up to 20mA for radiographic	Fixed 20 mA.
film exposures	C-Arm Dimensions:
Full power from outlet:	Height:1750 / 2250mm
50 Hz or 60 Hz.	Width:880mm
100V-15A to 240V-10A.	F Length:1840 mm
X-Ray Tube	Weight:300kg
Fixed anode X-ray tube.	Fluoroscopy Mode:
100V-15A to 240V-10A.	Focal spot: 0.6 mm.
Anode heat capacity:50,100HU.	kVp range: 40 – 110 kVp.

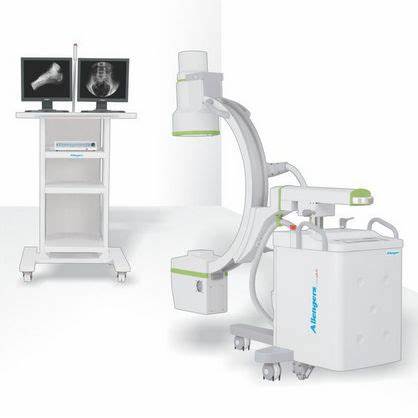

HF 49R

Specification	Parameter
Brand	Allengers
MODEL	HF 49R
X-Ray Generator	High Frequency 40 KHz,
O/P power	6 KW X-Ray Generator
Fluoro/Radiographic	40 to 120 KV
Fluoro mA (Normal Mode)	0.1 to 5 mA
Radiographic	30 to 100 mA
Radiographic Timer	0.1 to 3 seconds
Tube Head	Mono block with rot.
X-Ray Tube Focal Spots	dual.
Image Intensifier Tube with Power Supply Unit	9" (230mm) Triple field (very high res.)
X-Ray Round Grid	9" - 8:1, 100 LPI OPTIONAL : 12" I. I.
Maximum KV output	120
Collimator	Motorized Collimator Provided.
Size.	23cm
Output Image diameter	25cm.
Image memory	100F/DIP IQ

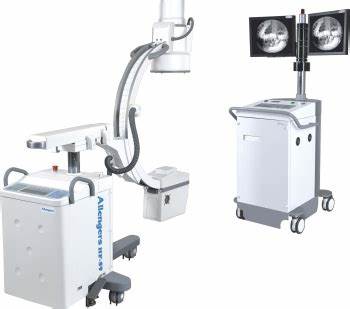

HF 59

Specification	Parameter
MODEL	HF 59
X-Ray Generator	High Frequency 50 KHz,
O/P	3.5 KW
Radiographic mA	30-70 mA
Fluoroscopic mA	0.1-5mA
Fluoroscopic mA H.D Mode (Max. mA)(optional)	7.5mA
IMAGING CHAIN:	Digital
Image Intensifying Tube	9 Inches(230mm)
CCD Camera	625 lines interlaced scanning 1/2" CCD Sensor.
Memory	Gree Image(LDHD)/1K x 1K
POWER REQUIREMENTS	230v AC, 50Hz, 15A
